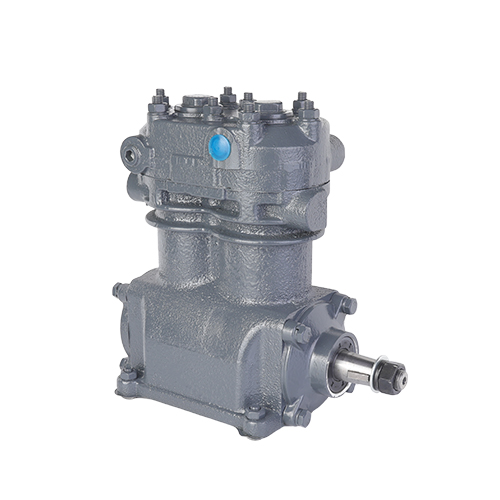

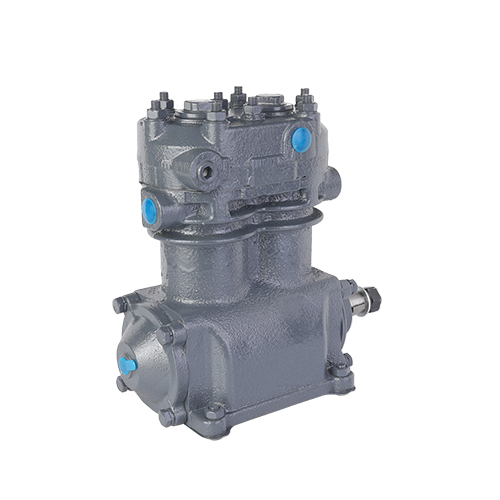

Double Acting Truck Compressor

The air compressor is the core of the air source device, which converts the mechanical energy of the motor into gas pressure energy, and is a pressure generating device for compressed air. The on-board air compressor sucks in natural air, and out comes compressed air with a certain density, which is then sent to the air storage tank to form high-pressure air with a pressure higher than 10 kilograms, for the actuator on the vehicle to do work. The main applications of air compressors in vehicles include brake systems, door pumps and clutch cylinders, and air suspension.

Applicable models: ZIL/MAZ/KRAZ/URAL/BELAZ

Material: cast iron

Maximum pressure: 10 bar

Working pressure: 8 bar

Cylinder diameter: φ sixty

Stroke: 38mm

Displacement: 214cc

Working speed: 2000r/min

Maximum speed: 2500r/min
