Comparison of Two Air Valve Structures for Vehicle Brake Air Compressor: Old Separate Valve Disc with Spring vs New Integrated Valve Plate Assembly
1. Old Style: Separate Rigid Valve Disc with Individual Spring (Standard for Early Truck Air Compressors)
Structure
The intake and exhaust valve discs are separate components. Each valve disc is fitted with an independent small compression spring and a lift limiter. Valve seats are cast integrally inside the cylinder head with scattered parts for assembly.
Working Principle
During suction and compression strokes of the piston, airflow pushes open the rigid metal valve discs, which rely on individual springs to rebound and seal the valve ports. The small springs endure high-frequency impact continuously.
Advantages
1. Parts can be replaced individually; only damaged single valve discs or springs need replacement, lowering maintenance costs.
2. Valve lift is adjustable, compatible with low-speed engines of older models.
Main Disadvantages (Main Reason for Phase-out)
1. Springs are prone to fatigue failure: Long-term vehicle vibration and high operating temperature weaken spring tension, causing poor sealing, air leakage, slow air pumping and insufficient air pressure.
2. Numerous loose parts lead to inconsistent assembly clearances; unsynchronized opening/closing of multiple valve discs creates high airflow resistance and low charging efficiency.
3. Single-point impact warps valve discs easily, resulting in poor sealing; carbon deposits at high temperatures cause valve jamming.
4. Poor flatness of cast valve seats in cylinder heads creates large clearance volume, increasing energy consumption and slowing pressure build-up.
5. Severe vibration and noise; broken valve debris may scratch cylinders and pistons after long service.

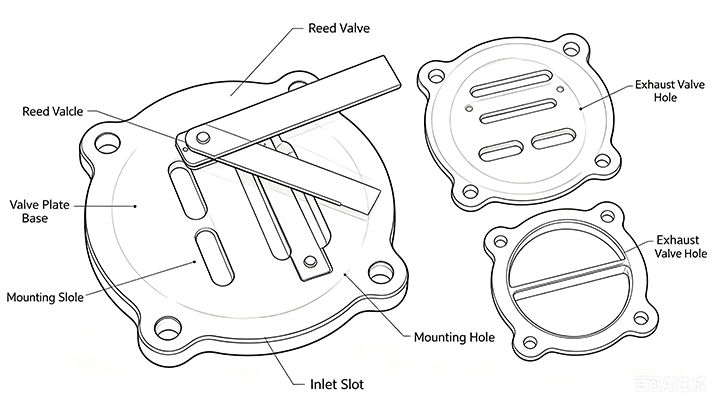

2. New Style: Integrated Valve Plate with Built-in Valve Discs (Current Mainstream for Truck Brake Air Compressors)
Structure
An integrated valve plate base with intake and exhaust valve discs riveted or fixed as one assembly. Most designs eliminate dozens of small separate springs, adopting tongue-type flexible valve discs that reset via their own elasticity. The whole assembly is mounted directly onto the cylinder head.
Working Principle
Ultra-thin high-toughness steel valve discs open and close by self-elasticity without independent small springs. The entire valve plate achieves flat sealing, and all valve ports act synchronously.
Core Advantages
1. No separate springs, eliminating spring fatigue failures; service life is extended by 3–5 times with much lower failure rates.
2. Precisely machined valve plate ensures excellent flatness and tight sealing with minimal air leakage, faster air pumping and lower fuel consumption.
3. Uniform airflow across all ports reduces pressure fluctuation, vibration and operating noise significantly.
4. Integrated design cuts part count by 60% for easier assembly and consistent factory performance.
5. Thinned valve plate design minimizes cylinder clearance volume for higher volumetric efficiency and stable pressure under heavy load or mountainous driving conditions.
6. Resistant to oil contamination and carbon build-up with less valve jamming; full valve plate replacement takes only 10 minutes during maintenance.
Minor Drawbacks
1. The entire valve plate must be replaced if any valve disc fails; the overall replacement cost is slightly higher than single separate valve disc/spare parts of the old structure.
2. No independent fine-tuning for weakened valve elasticity; full assembly replacement is mandatory once fatigue occurs.
3. Summary for Technical Manuals
1. Old separate rigid valve disc with split springs
Drawbacks: Spring fatigue, poor sealing, low charging efficiency and high failure rate. Only suitable for cost-sensitive maintenance, gradually phased out from the market.
2. New integrated valve plate assembly
Advantages: No independent springs, excellent vibration and high temperature resistance, superior air tightness, fast air pumping, long service life and stable operation. The mainstream solution for light-duty and heavy-duty truck brake air compressors.
4. Application Recommendations
- Short-distance light-load fleets prioritizing low maintenance cost: Old spring valve disc structure is still acceptable.
- Long-haul trucks, muck trucks, heavy vehicles or mountain routes with continuous air pumping demand: Integrated valve plate assembly is strongly recommended to eliminate breakdown risks caused by insufficient braking air pressure on the road.
